FFPE ChIP-Seq

obtain ChIP-Seq data from clinical samples



FFPE ChIP-Seq Service Overview

FFPE

Epigenetic misregulation is now known to contribute to diseases such as cancer. In cancer, mutations in the enzymes that regulate histone modification deposition and removal are mutated at a high frequency and these mutations result in alterations in global histone modification patterns. Understanding changes in genome-wide histone modification profiles by performing ChIP-Seq assays can provide clues to cellular origins, disease progression, and possibly, patient outcome.

To fully realize the potential of genome-wide histone modification profiling toward advances in disease biology and clinical outcomes, it will be necessary to generate ChIP-Seq data using formalin-fixed, paraffin-embedded (FFPE) patient samples. However, ChIP-Seq is challenging and has traditionally required cell numbers that are much greater than what can be obtained from FFPE sections. To address this limitation, scientists at Active Motif have developed proprietary protocols and workflows to enable generation of high-quality ChIP-Seq data from limited amounts of FFPE tissue.

Let our team of ChIP-Seq experts help run the FFPE ChIP-Seq experiments and do the bioinformatics for you so you can publish faster and in higher impact journals.

The FFPE ChIP-Seq Service Includes:

  • Chromatin isolation from FFPE blocks, slides or sections*.
  • Immunoprecipitation using a robust ChIP-validated histone modification or transcription factor antibody.
  • Library construction for next-generation sequencing.
  • Next-generation sequencing using the Illumina platform.
  • Comprehensive bioinformatics and delivery of publication-ready figures.

* 5 sections (10 µm) per ChIP-Seq experiment are necessary.

To learn more, please submit an Epigenetic Services Information Request. You can also download Active Motif’s Epigenetic Services Brochure.

Become a ChIP Assay Expert


FFPE ChIP-Seq Service Data

Active Motif’s FFPE ChIP-Seq Services have been used to generate high-quality ChIP-Seq data from clinical FFPE samples that have been preserved for more than 20 years. Sample types we have successfully processed include tumor FFPE and matched normal FFPE tissue samples from human liver, kidney, colon, and other tissue types. These assays have been performed successfully using ChIP-validated antibodies against multiple histone modifications.

ChIP-Seq performed using antibodies against H3K4me3 and H3K36me3

(Click image to enlarge)

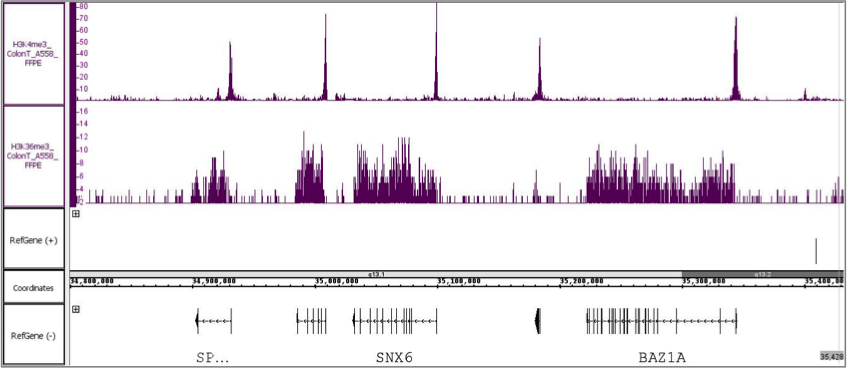

Figure 1: FFPE ChIP-Seq Service performed using a 20-year-old colon tumor FFPE block and antibodies against H3K4me3 and H3K36me3.

Chromatin was extracted from 5 x 10 µm sections derived from a 20-year-old colon tumor FFPE block and ChIP-Seq was performed using antibodies against H3K4me3 and H3K36me3. Each ChIP reaction used approximately 1/3rd of the chromatin preparation. Roughly 500,000 bases of the human genome are depicted in the image above showing H3K4me3 occupancy at promoters and H3K36me3 occupancy across gene bodies.


ChIP-Seq performed using antibodies against H3K27ac and H3K27me3

(Click image to enlarge)

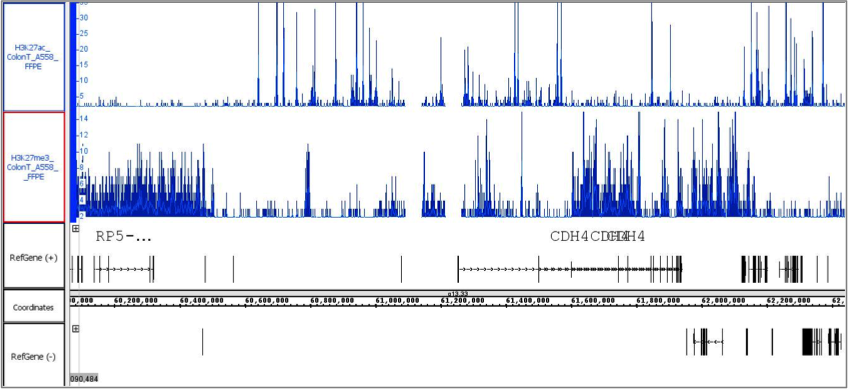

Figure 2: FFPE ChIP-Seq Service performed using 20-year-old colon tumor FFPE block and antibodies against H3K27ac and H3K27me3.

Chromatin was extracted from 5 x 10 µm sections derived from a 20-year-old colon tumor FFPE block and ChIP-Seq was performed using antibodies against H3K27ac and H3K27me3. Each ChIP reaction used only 1/3rd of the chromatin preparation. Roughly 2.4 million bases of the human genome are depicted in the image above showing mutually exclusive binding of the enhancer mark H3K27ac and the repressive mark H3K27me3.


ChIP-Seq performed using antibodies against H3K27ac and H3K27me3

(Click image to enlarge)

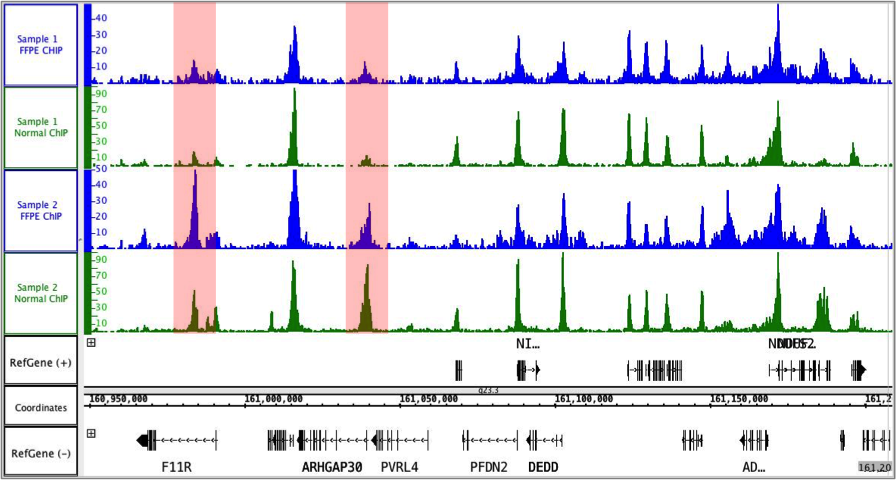

Figure 3: FFPE ChIP-Seq Service performed using 2 human glioblastoma biopsies and an antibody against H3K27ac.

Biopsies were provided as both FFPE tissue samples (blue) and fresh/frozen tissue samples (green). FFPE and fresh/frozen ChIP-Seq data sets were similar. Tumor-specific H3K27ac occupancy was detectable in the FFPE and fresh/frozen data sets (highlighted in red).


ChIP-Seq performed using antibodies against H3K27ac and H3K27me3

(Click image to enlarge)

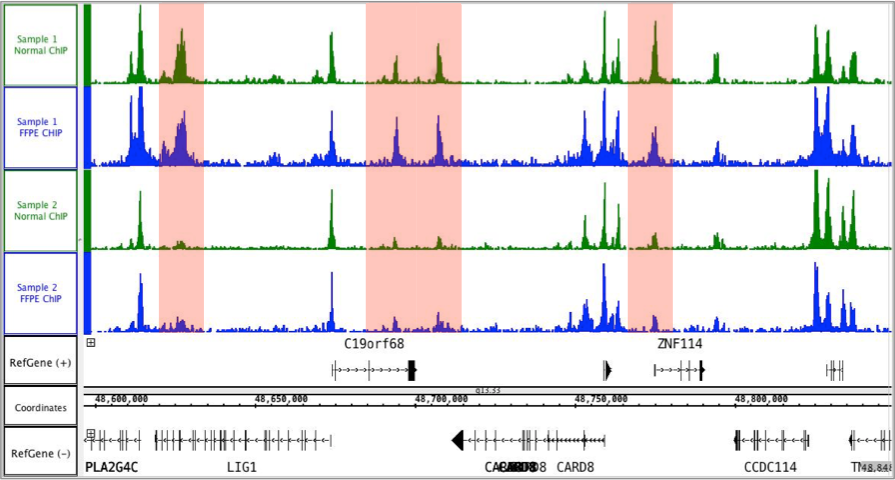

Figure 4: FFPE ChIP-Seq Service performed using 2 human glioblastoma biopsies and an antibody against H3K27ac.

Biopsies were provided as both FFPE prepared samples (blue) and fresh/frozen samples (green). FFPE and fresh/frozen ChIP-Seq data sets were similar. Tumor-specific H3K27ac occupancy was detectable in the FFPE and fresh/frozen data sets (highlighted in red).


ChIP-Seq performed using antibodies against H3K27ac and H3K27me3

(Click image to enlarge)

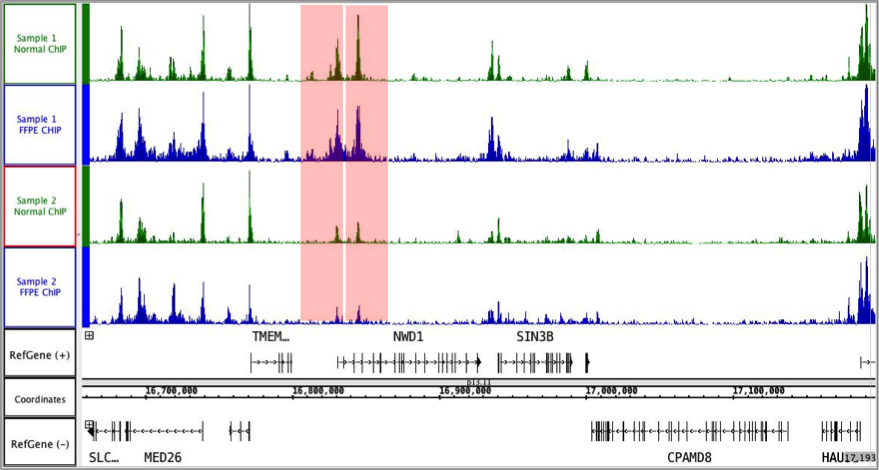

Figure 5: FFPE ChIP-Seq Service performed using 2 human glioblastoma biopsies and an antibody against H3K27ac.

Biopsies were provided as both FFPE prepared samples (blue) and fresh/frozen samples (green). FFPE and fresh/frozen ChIP-Seq data sets were similar. Tumor-specific H3K27ac occupancy was detectable in the FFPE and fresh/frozen data sets (highlighted in red).


ChIP-Seq performed using antibodies against H3K27ac and H3K27me3

(Click image to enlarge)

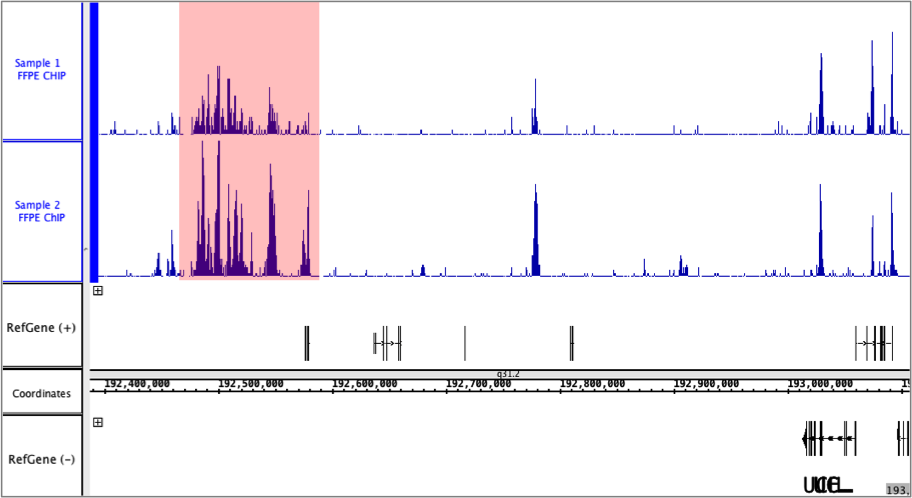

Figure 6: FFPE ChIP-Seq Service was performed using chromatin from two human FFPE tumor biopsies and an antibody against H3K27ac.

The region highlighted in red shows a differential super-enhancer.


FFPE ChIP-Seq performed using a human Glioblastoma biopsy and an antibody against H3K27me3

(Click image to enlarge)

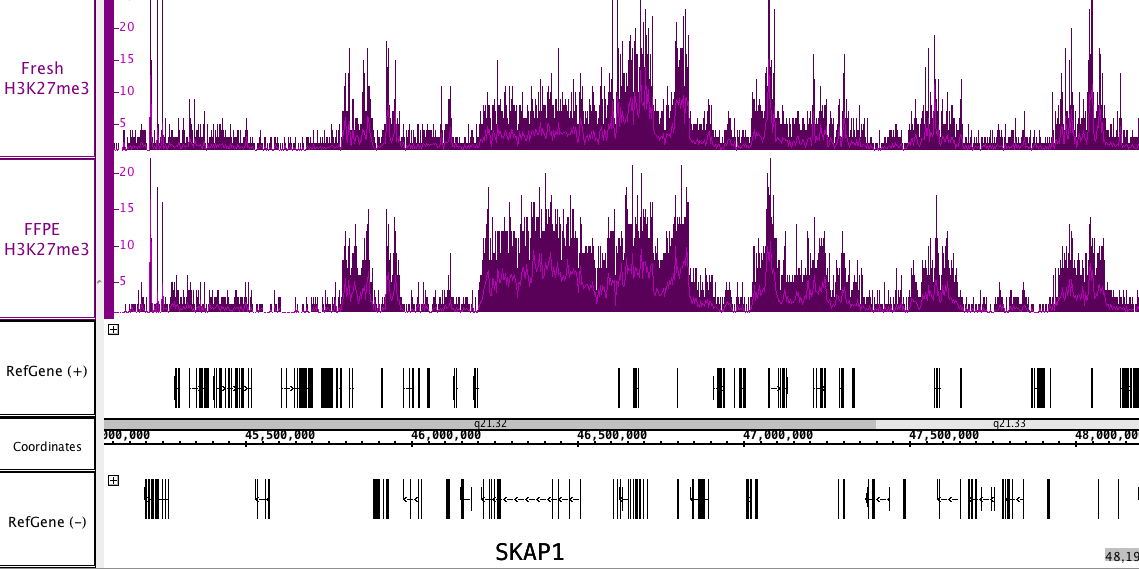

Figure 7: FFPE ChIP-Seq Service performed using a human glioblastoma biopsy and an antibody against H3K27me3.

The biopsy was provided as both a fresh/frozen sample and FFPE tissue block. FFPE and fresh/frozen ChIP-Seq data sets gave similar results. The image shows a typical H3K27me3 occupancy pattern of long stretches of the genome containing the H3K27me3 modification.


FFPE ChIP-Seq performed using a human Glioblastoma biopsy and an antibody against H3K27me3

(Click image to enlarge)

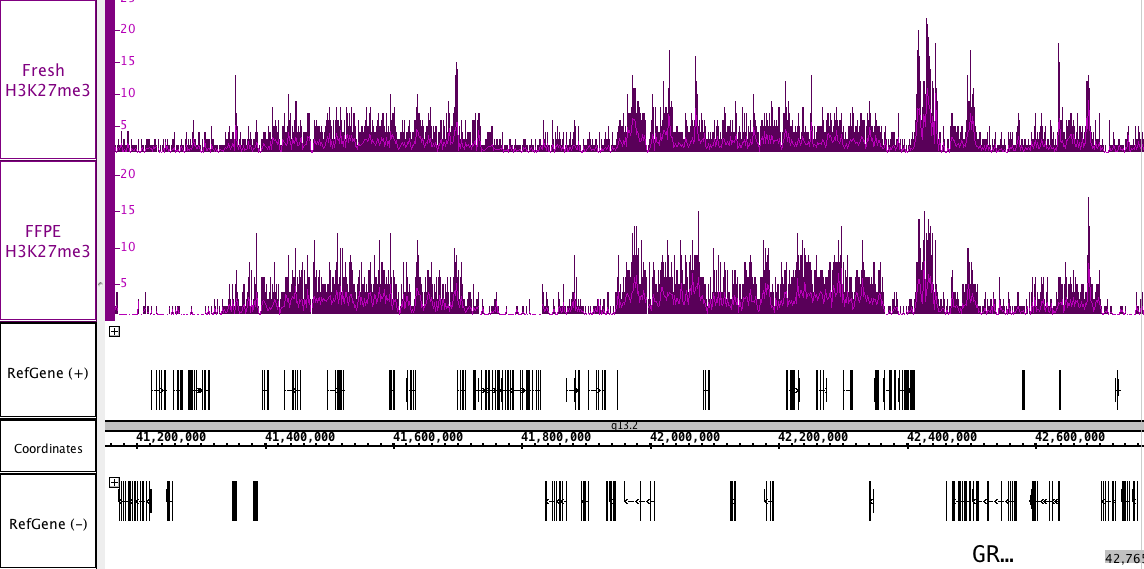

Figure 8: FFPE ChIP-Seq Service performed using a human glioblastoma biopsy and an antibody against H3K27me3.

The biopsy was provided as both a fresh/frozen sample and FFPE tissue block. FFPE and fresh/frozen ChIP-Seq data sets gave similar results. The image shows a typical H3K27me3 occupancy pattern of long stretches of the genome containing the H3K27me3 modification.





FFPE ChIP-Seq Service Documents







Get a FFPE ChIP-Seq Service Quote





You might also be interested in:


Name Cat No. Price
FFPE ChIP-Seq 25019 Get Quote

FFPE ChIP-Seq Data

Active Motif has performed FFPE ChIP-Seq from clinical samples that have been preserved for more than 10 years. Sample types include tumor and matched normal tissue from human liver, kidney, colon and others. These assays have been performed successfully using robust ChIP-Seq validated antibodies against histone modifications.

ChIP-Seq performed using antibodies against H3K4me3 and H3K36me3
Figure 1: FFPE ChIP-Seq performed using 20 year old colon tumor FFPE block and antibodies against H3K4me3 and H3K36me3.

Chromatin was extracted from 5 x 10 µm sections derived from a 20 year old colon tumor FFPE block and ChIP-Seq was performed using antibodies against H3K4me3 and H3K36me3. Each ChIP reaction used approximately 1/3rd of the chromatin preparation. Roughly 500,000 bases of the human genome are depicted in the image above showing H3K4me3 occupancy at promoters and H3K36me3 occupancy across gene bodies.

ChIP-Seq performed using antibodies against H3K27ac and H3K27me3
Figure 2: FFPE ChIP-Seq performed using 20 year old colon tumor FFPE block and antibodies against H3K27ac and H3K27me3.

Chromatin was extracted from 5 x 10 µm sections derived from a 20 year old colon tumor FFPE block and ChIP-Seq was performed using antibodies against H3K27ac and H3K27me3. Each ChIP reaction used only 1/3rd of the chromatin preparation. Roughly 2.4 million bases of the human genome are depicted in the image above showing mutually exclusive binding of the enhancer mark H3K27ac and the repressive mark, H3K27me3.

ChIP-Seq performed using antibodies against H3K27ac and H3K27me3
Figure 3: FFPE ChIP-Seq performed using 2 human Glioblastoma biopsies and an antibody against H3K27ac.

Biopsies were provided as both FFPE prepared samples (blue) and fresh/frozen samples (green). FFPE and fresh/frozen ChIP-Seq data sets were similar. Tumor-specific H3K27ac occupancy was detectable in the FFPE and fresh/frozen data sets (highlighted in red).

ChIP-Seq performed using antibodies against H3K27ac and H3K27me3
Figure 4: FFPE ChIP-Seq performed using 2 human Glioblastoma biopsies and an antibody against H3K27ac.

Biopsies were provided as both FFPE prepared samples (blue) and fresh/frozen samples (green). FFPE and fresh/frozen ChIP-Seq data sets were similar. Tumor-specific H3K27ac occupancy was detectable in the FFPE and fresh/frozen data sets (highlighted in red).

ChIP-Seq performed using antibodies against H3K27ac and H3K27me3
Figure 5: FFPE ChIP-Seq performed using 2 human Glioblastoma biopsies and an antibody against H3K27ac.

Biopsies were provided as both FFPE prepared samples (blue) and fresh/frozen samples (green). FFPE and fresh/frozen ChIP-Seq data sets were similar. Tumor-specific H3K27ac occupancy was detectable in the FFPE and fresh/frozen data sets (highlighted in red).

ChIP-Seq performed using antibodies against H3K27ac and H3K27me3
Figure 6: FFPE ChIP-Seq was performed using chromatin from two human tumor biopsies and an antibody against H3K27ac.

The highlighted region shows a differential Super Enhancer.

FFPE ChIP-Seq performed using a human Glioblastoma biopsy and an antibody against H3K27me3
Figure 7: FFPE ChIP-Seq performed using a human Glioblastoma biopsy and an antibody against H3K27me3.

The biopsy was provided as both a fresh/frozen samples and FFPE tissue block. FFPE and fresh/frozen ChIP-Seq data sets gave similar results. The image shows a typical H3K27me3 occupancy pattern of long stretches of the genome being marked by H3K27me3.

FFPE ChIP-Seq performed using a human Glioblastoma biopsy and an antibody against H3K27me3
Figure 8: FFPE ChIP-Seq performed using a human Glioblastoma biopsy and an antibody against H3K27me3.

The biopsy was provided as both a fresh/frozen samples and FFPE tissue block. FFPE and fresh/frozen ChIP-Seq data sets gave similar results. The image shows a typical H3K27me3 occupancy pattern of long stretches of the genome being marked by H3K27me3.
